Description
Overview

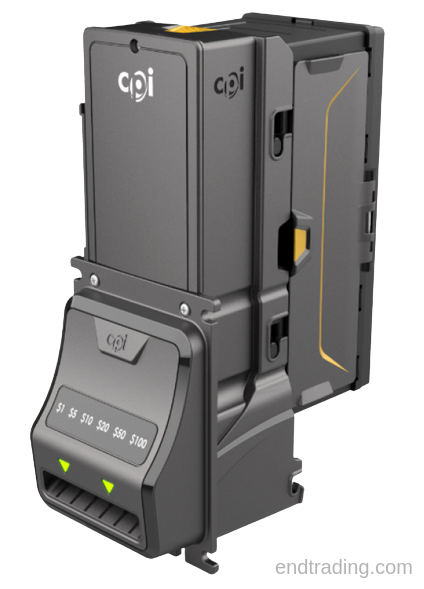

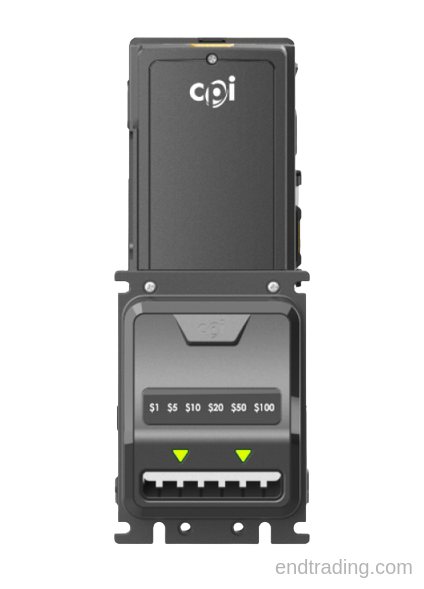

The MEI Talos T881-D7EUS is a U.S.-currency 110 V AC bill validator from the Crane MEI Talos T8 Series, replacing the legacy AE2881-D7EUS. It offers faster note acceptance, improved counterfeit protection, and easier service through Crane’s modular Talos platform.
This model features a D-Bezel (High-Visibility Compact) for enhanced visibility and user guidance, a Down-Stacker configuration for smooth vertical bill storage, and a 700-note cassette for medium-volume routes. Operating on 110 V AC, it’s ideal for legacy systems that require AC power instead of MDB (24 V DC).
Key Features
- Accepts U.S. $1–$100 bills with 4-way optical validation
- 110 V AC interface for legacy vending and amusement systems
- Replaces legacy AE2881-D7EUS
- D-Bezel (High-Visibility Compact) for tight front-mount applications
- Down-Stacker with 700-note cassette
- Advanced anti-counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for tool-free maintenance
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy Interface |
| Bezel Type | D-Bezel (High-Visibility Compact) |
| Stacker Orientation | Downward (Down-Stacker) |
| Operating Voltage | 110 V AC ± 10 % |
| Stacker Capacity | 700 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s advanced platform with modular design and high-speed optics. |
| 8 | Model Family | T8 Series — direct replacement for AE28xx validators. |
| 8 | Bezel Type | High-Visibility Compact D-Bezel for vending and amusement applications. |
| 1 | Power Configuration | 110 V AC operation for legacy vending and amusement machines. |
| D7 | Stacker / Capacity | Down-Stacker with 700-note cassette capacity. |
| EUS | Build Code | U.S. E-series mainboard with Talos firmware. |
Summary:
The MEI Talos T881-D7EUS replaces the AE2881-D7EUS, featuring a High-Visibility Compact D-Bezel, Down-Stacker with 700-note cassette, and 110 V AC interface, delivering reliable, high-speed validation for legacy vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T8 |
| Voltage | 110v AC |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 700 Bills |
| Bezel Type | MEI Compact Downstacker "8" |
| Denomination Acceptance | $1-$100 |
| Condition | New |
