Description
Overview

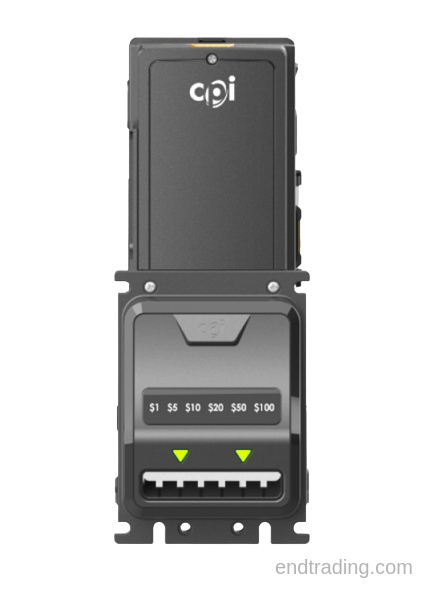

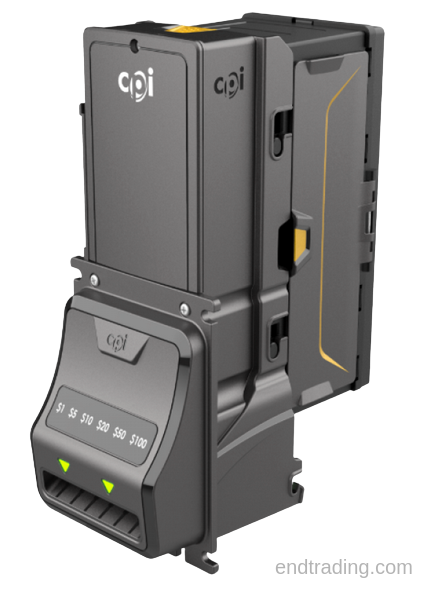

The MEI Talos T631-D5EUS is a U.S.-currency 110 V AC bill validator designed for amusement, kiosk, and legacy vending machines. As part of the Talos T6 Series, it replaces the discontinued AE2631-D5EUS model, offering faster validation, stronger counterfeit detection, and improved serviceability with a modular design.
Featuring MEI’s D-Bezel (High-Visibility Compact Bezel), this validator provides a bright, illuminated bill entry slot ideal for compact machine panels. The T631-D5EUS combines MEI’s proven gear-driven transport system with advanced optical sensors to ensure reliable note acceptance and reduced maintenance downtime.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- 110 V AC interface for legacy vending and amusement systems
- High-Visibility Compact D-Bezel for smaller door openings
- Replaces legacy AE2631-D5EUS
- Enhanced anti-stringing and counterfeit protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular construction for easy service
- Durable gear-driven transport for long-life reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy Interface |
| Bezel Type | D-Bezel (High-Visibility Compact) |
| Operating Voltage | 110 V AC ± 10% |
| Stacker Capacity | Up to 500 notes (down-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — MEI’s next-generation validator platform offering enhanced optics and modular construction. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 3 | Bezel Type | High-Visibility Compact D-Bezel |
| 1 | Power Configuration | 110 V AC input for non-MDB amusement and vending systems. |
| D | Stacker Orientation | Down-stacker — bills stack vertically down into the cassette. |
| 5 | Stacker Capacity | 500-note stacker box (standard capacity for compact MDB validators). |
| EUS | Build Code | U.S. standard E-series mainboard build with Talos firmware for AC operation. |
Summary:
The MEI Talos T631-D5EUS replaces the AE2631-D5EUS, offering a compact high-visibility D-Bezel, down-stacker design, and 110 V AC power input. It provides fast, secure note validation and smooth retrofit capability for legacy vending and amusement systems
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T6 |
| Voltage | 110v AC |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI VFM Downstacker "3" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
