Description
Overview

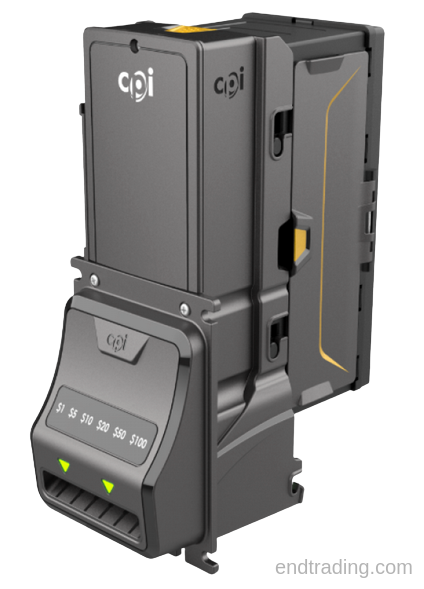

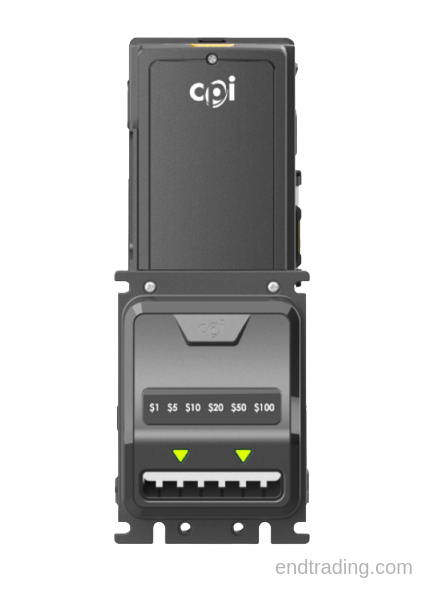

The MEI Talos T684-D5IUS is a U.S.-currency 12 V DC bill validator designed for vending, kiosk, and amusement applications. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2684-D5IUS and features a compact down-stacker configuration with a 500-note cassette for space-limited cabinets. The T684-D5IUS delivers faster note acceptance, advanced optical validation, and long-term reliability for pulse environments.
With its Type 8 compact body and D-stacker orientation, the T684-D5IUS is ideal for low-clearance vending and amusement machines. It provides four-way bill acceptance, enhanced counterfeit detection, and a quick-release 500-note stacker for easy maintenance and serviceability.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- Compact down-stacker body (Type 8) with 500-note cassette
- Pulse interface for car wash, kiosk, and amusement systems
- Replaces legacy AE2684-D5IUS
- Enhanced anti-counterfeit and anti-stringing protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 500-note stacker for fast service and maintenance
- Rugged gear-driven transport for high-duty operation
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | Pulse (Parallel) output |
| Body Type | Compact Down-Stacker (Type 8) |
| Stacker Orientation | Downward (D-Type) |
| Stacker Capacity | Up to 500 notes (removable cassette) |
| Operating Voltage | 12 V DC |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform with advanced optics and modular serviceability. |
| 6 | Family | T6 Series — direct replacement for AE26xx validators. |
| 8 | Body Type | Compact down-stacker (Type 8) for tight machine layouts and low vertical clearance. |
| 4 | Power Configuration | 12 V DC operation for legacy vending and amusement machines. |
| D | Stacker Orientation | Down-stacker configuration — bills are transported downward into the 500-note cassette. |
| 5 | Stacker Capacity | 500-note stacker box— standard for AC-powered vending and amusement systems |
| IUS | Build Code | U.S. standard E-series mainboard with a pulse/parallel output (IVS / 12-pin style harness) |
Summary:
The MEI Talos T684-D5IUS replaces the AE2684-D5IUS, offering a compact down-stacker layout with a 500-note cassette, fast bill acceptance, with a 12 V DC interface, delivering reliable, high-speed validation for legacy vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T6 |
| Voltage | 12v DC |
| Supported Protocols | IVS |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI Compact Downstacker "8" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
