Description
Overview

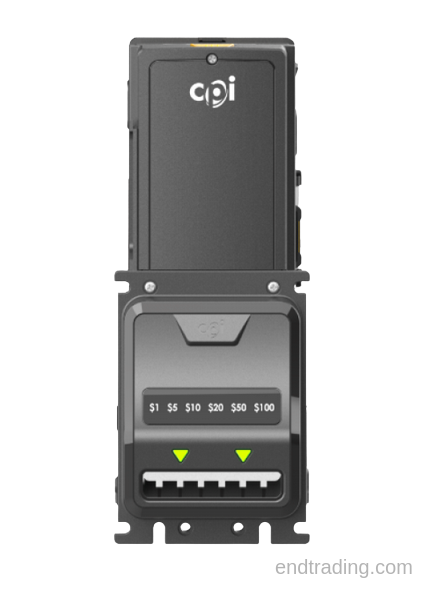

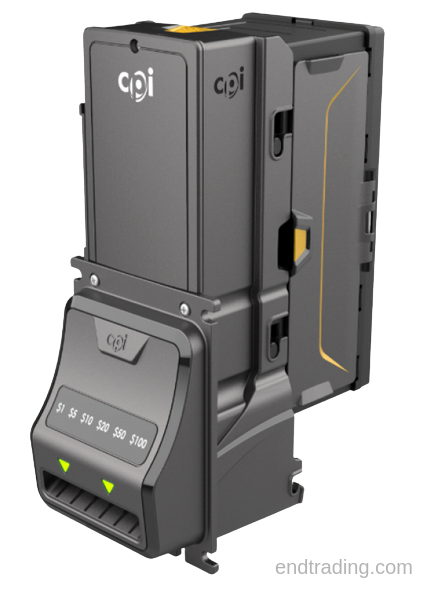

The MEI Talos T642-U3EUS is a U.S.-currency MDB bill validator equipped with a 12-pulse (parallel) interface harness designed for vending, amusement, and kiosk systems. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2642-U3EUS and brings faster validation, improved counterfeit protection, and simplified maintenance.
Using Crane MEI’s advanced Talos platform, the T642-U3EUS features upgraded optical sensors, modular service access, and a rugged gear-driven transport for long-term reliability. It’s fully MDB-compatible and engineered as a plug-and-play upgrade for AE26xx validators.
Key Features
- Accepts U.S. $1–$20 bills with fast, 4-way validation
- Standard MDB interface with a 12-pulse (parallel) interface harness for vending, kiosk, and amusement systems
- Replaces legacy AE2642-U3EUS
- Standard Talos bezel for universal front-entry installation
- Enhanced counterfeit and anti-stringing detection
- Field-upgradeable firmware via USB or handheld device
- Quick-release stacker for simple field maintenance
- Durable gear-driven mechanism for extended operational life
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 300 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform featuring modular design and improved optics. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 4 | Bezel Type | CPI Armored "4" bezel |
| 2 | Interface Type | MDB communication protocol — standard for modern vending and amusement systems. |
| U3 | Stacker Configuration | Up-stacker with 300-note cassette — compact design ideal for vending and kiosk installations. |
| EUS | Build Code | U.S. standard MDB build (E-series mainboard) with a 12-pulse (parallel) interface harness. |
Summary:
The MEI Talos T642-U3EUS replaces the AE2642-U3EUS, offering faster validation, improved serviceability, and dependable Crane MEI quality for MDB vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T6 |
| Voltage | 34v MDB |
| Supported Protocols | MDB |
| Stacker Capacity | 300 Bills |
| Bezel Type | MEI Armored "4" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
