Description
Overview

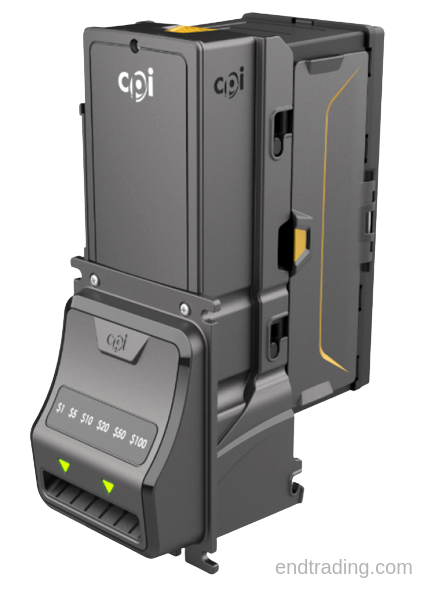

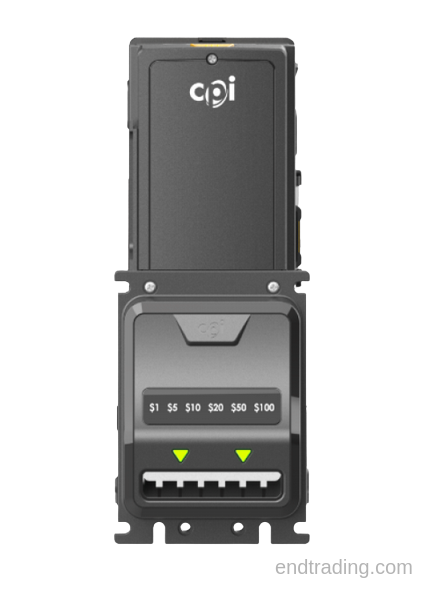

The MEI Talos T632-D7MUS is a U.S.-currency MDB bill validator from the Crane MEI Talos T6 Series, engineered as the direct replacement for the AE2632-D7MUS. It offers faster note acceptance, enhanced counterfeit detection, and modular servicing through Crane’s advanced Talos platform.
Equipped with a VFM front-mount bezel and a Down-Stacker cassette that holds 700 notes, the T632-D7MUS runs on 24 V DC / 34 V DC MDB power. It is ideal for vending, kiosk, and amusement systems needing reliable front-mount performance and medium-capacity bill storage.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB communication protocol (24 V DC / 34 V DC)
- Replaces legacy AE2632-D7MUS
- VFM Bezel — standard front-mount design for vending and amusement machines
- Down-Stacker with 700-note cassette capacity
- Advanced anti-counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for tool-free maintenance
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | VFM Front-Mount Bezel |
| Stacker Orientation | Downward (Down-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 700 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s modern validator platform with optical security and modular design. |
| 6 | Model Family | T6 Series — replacement for AE26xx validators. |
| 3 | Bezel Type | VFM Bezel — standard front-mount vending and amusement interface. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB operation. |
| D7 | Stacker / Capacity | Down-Stacker with 700-note cassette capacity. |
| MUS | Build Code | U.S. MDB mainboard configuration with Talos firmware. |
Summary:
The MEI Talos T632-D7MUS replaces the AE2632-D7MUS, featuring a VFM Bezel, Down-Stacker design, 700-note cassette, and 24 V DC MDB operation for vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T6 |
| Voltage | 34v MDB |
| Supported Protocols | MDB |
| Stacker Capacity | 700 Bills |
| Bezel Type | MEI VFM Downstacker "3" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
