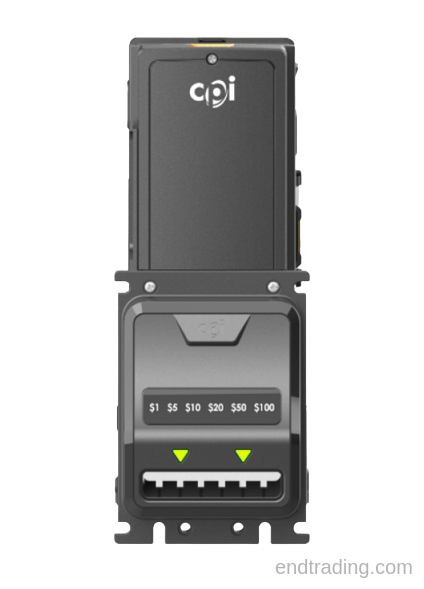

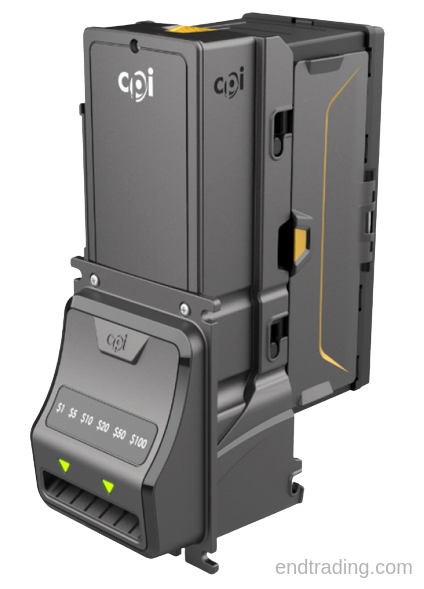

The MEI Talos T602-U5MUS is a U.S.-currency MDB bill validator from the Crane MEI Talos T6 Series, engineered for vending, kiosk, and amusement machines. It replaces the discontinued AE2602-U5MUS and offers faster bill acceptance, improved optical accuracy, and simplified servicing through Crane’s modular Talos platform.
This model features the proven VFM Bezel with an Up-Stacker configuration, powered by 24 V DC / 34 V DC MDB. Its 500-note cassette and precision gear drive provide long-term reliability and smooth performance in any MDB environment.
Key Features
- Accepts U.S. $1 – $20 bills with 4-way optical validation
- MDB protocol (24 V DC / 34 V DC)
- Replaces legacy AE2602-U5MUS
- VFM Bezel for standard vending-door installations
- Up-Stacker design with 500-note cassette
- Advanced counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for easy maintenance
- Durable gear-driven transport system for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | VFM Front-Mount Bezel (Up-Stacker) |
| Stacker Orientation | Upward |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 500 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform with enhanced optics and modular design. |
| 6 | Model Family | T6 Series — direct replacement for AE26xx validators. |
| 0 | Bezel / Body Type | VFM Bezel for standard front-mount vending applications. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB operation for modern vending and amusement systems. |
| U5 | Stacker / Capacity | Up-Stacker with 500-note cassette capacity. |
| MUS | Build Code | U.S. MDB build (M-series mainboard) with Talos firmware. |
Summary:
The MEI Talos T602-U5MUS replaces the AE2602-U5MUS, featuring a VFM front-mount bezel, Up-Stacker design, 24 V DC MDB operation, and a 500-note cassette for reliable Crane MEI performance.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Model Series | Talos T6 |
| Voltage | 34v MDB |
| Supported Protocols | MDB |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI VFM Upstacker "0" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
